PES-Solutions Cooling Tower Epoxy Coating Services

PES is licensed by the state of Texas to do work with cooling towers. We offer services to assist in maintaining your cooling tower, and ultimately expanding the life of the tower. We offer products such as PES 501 and PES 505 to seal leaks. In addition, we can apply our Anti-slip coating PES-2500 to the interior of your cooling tower to reduce slipping risks.

Here is an example of a cooling tower epoxy coating service we recently did for a customer in which we completed another cell in their 4-cell concrete cooling tower. In addition to applying our epoxy coatings to repair cracks, corners and 90° transitions, our team also applied our Anti-Slip PES-2500 this year.

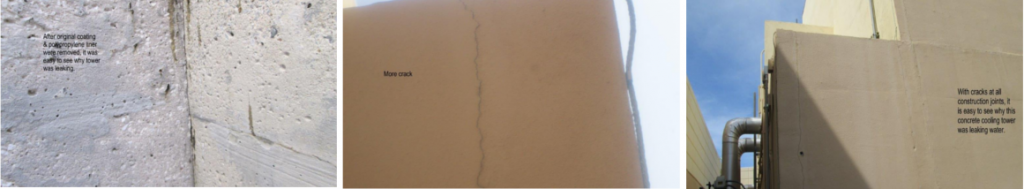

Before PES 501, PES 570 and Anti-Slip 2500 Coatings
Before PES 501, PES 570 series and Anti-Slip 2500 Coatings

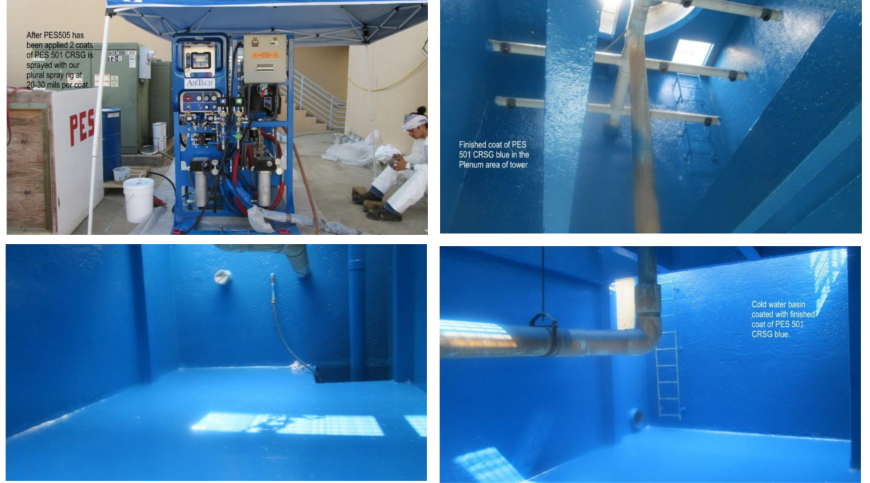

After PES 501 and PES 570 series Coatings

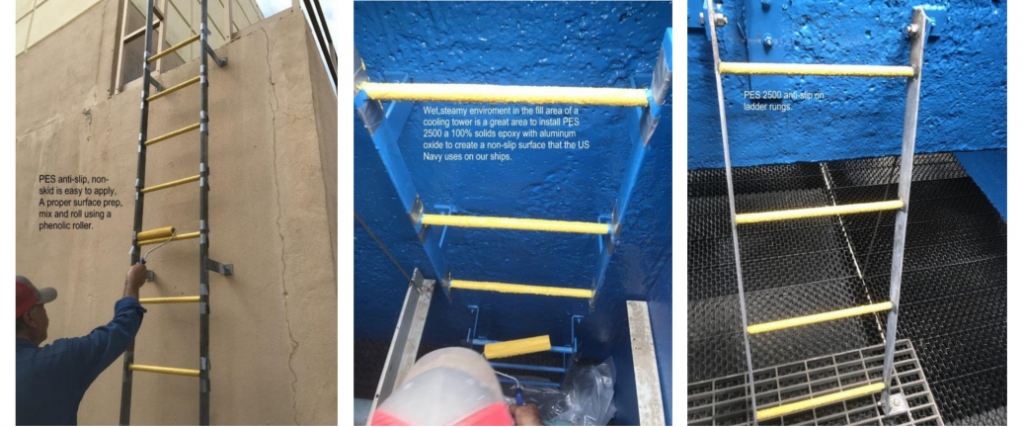

After Anti-Slip 2500 Coating

In-place air handler bearing fit shaft repair using PES Release Agent and PES 101 Power Metal

Shaft Repairs – Using the Former (split sleeve) Technique

Shaft is damaged, disassembly is difficult or impractical. Repair in place is attractive. Remove old bearing and other obstructions. Prep the shaft with grinders. Leave surface as rough as possible.

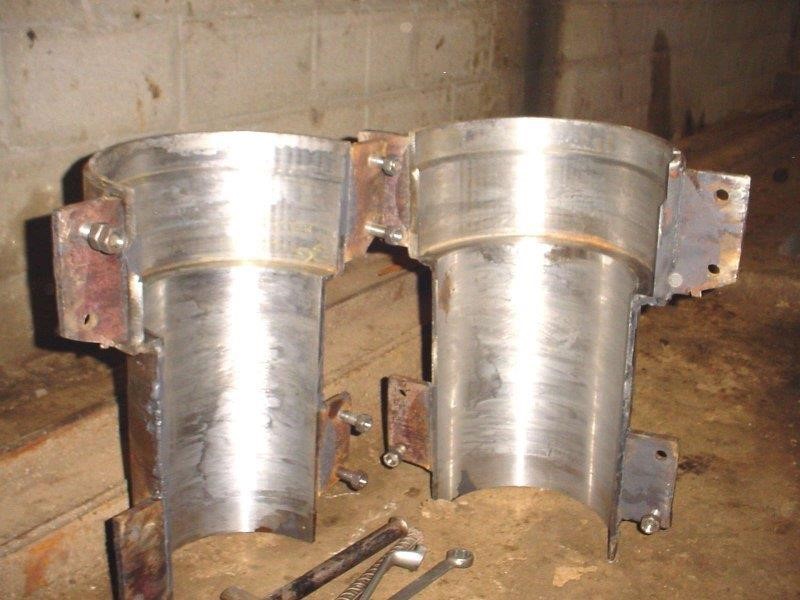

Machine a split sleeve (can be made from any rigid material). The I/D of the sleeve is to be the same as the O/D of the shaft. 1/8” weep holes are drilled in the sleeve every 3 – 4 inches. Release agent is applied to sleeve. PES 101 Power Metal is applied to both shaft and sleeve and sleeve is clamped in place.

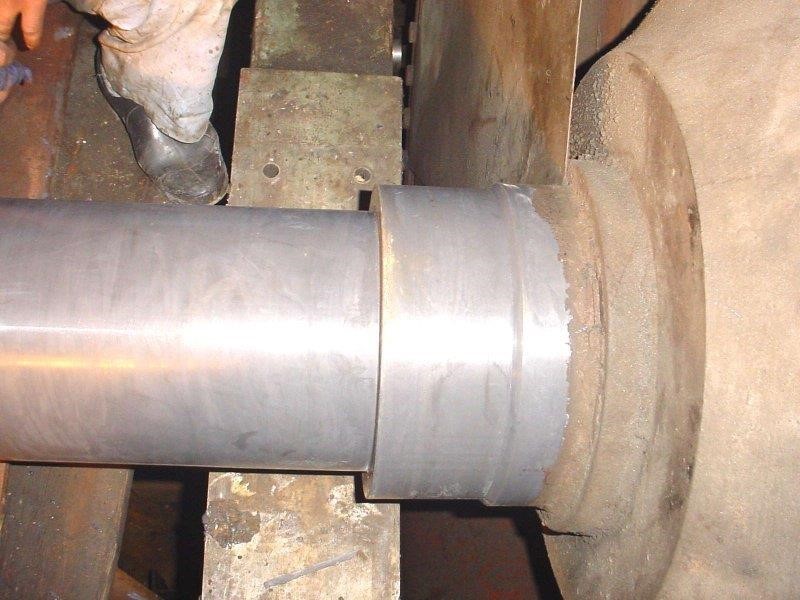

Once the PES 101 Power Metal material has cured (2 to 4 hours), the sleeve is removed. Parting lines and nubs from the weep holes are cleaned up with emery cloth and the shaft is ready for reassembly.

Advantages to Polymeric Repair Systems

  • No heat distortion, stress or metallurgical changes to substrate material
  • Our materials are based on resilient resin systems which allow the same product to be used on multiple substrates. This also makes our materials able to withstand vibration, impact and thermal movement better than other systems.
  • Effective on any substrate (aluminum, cast iron, stainless…)
  • No special equipment required
  • Easy application
  • Can be done in place
  • Minimal downtime
  • Cost effective

Ask for a turnkey price or pricing for coatings and repair compounds, along with working with your staff or contractor to make these Polymeric repairs for you.
